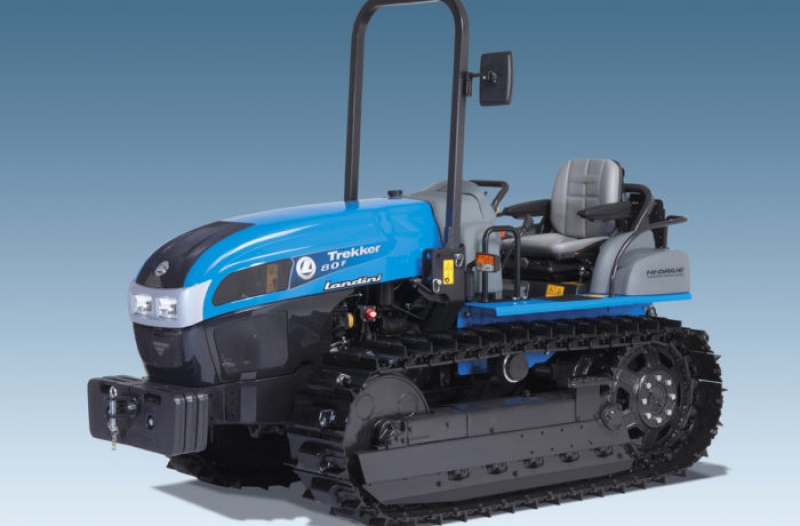

The Landini Trekker F and M
The Landini Trekker F and M are specialized crawler tractors offering enhanced features in terms of performance, ergonomics, functionality and design. With a new rounded hood that reflects the Landini family feeling while matching perfectly with the style of the valance panels on the driver’s sides, a foldable two-post ROPS and 12 in (310 mm) track shoes giving a total tractor width of 55.5 in. (1410 mm), the Trekker F is ideal for use in limited spaces like vineyards and orchards. Low centre of gravity, high tractive capacity, reduced soil compaction and 18 in. (450 mm) track shoes giving a total tractor width of 69 in. (1750 mm) allow the Trekker M to work on sloping orchards and open fields in complete safety. The driving seat mounted on a platform suspended on silent-blocks is equipped with ergonomic controls and adjustable sprung seat for maximum driver comfort. The new Perkins 1104D (Tier 3) 4-cylinder naturally aspirated and turbocharged engines delivering 74, 83, 92.5 and 98.5 hp (ISO rating), are specially designed to provide superior performance for farming applications. The range includes eight models with different engine options and track widths for added versatility and maximum productivity.
brochure available in english, french and spanish.
New Perkins “Tier 3” 1100D Series engines with forward tilting hood.
The new Perkins 4-cylinder naturally aspirated and turbocharged engines deliver 74, 83, 92.5 and 98.5 HP (ISO rating), respectively. Specially designed for farming applications, these environmentallyfriendly engines meet the TIER 3 emission standards, while providing high torque backup, improved fuel economy and low noise. The new tilting hood reflecting the Landini family feeling provides easy access to the engine for routine service and maintenance.
| TREKKER 80 | TREKKER 90 | TREKKER 100 | TREKKER 105 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| F | M | F | M | F | M | F | M | ||||
| Perkins direct-injection engine (TIER3) | 1104D-44 | 1104D-44T | 1104D-44T | 1104D-44T | |||||||
| max. power (ISO), hp/kw | 74/54,5 | 83/61 | 92,5/68 | 98,5 / 72,5 | |||||||
| net PTO power (ISO), hp/kw | 68,5/50,5* | 77/56,5* | 85,5/62,5* | 91 / 67* | |||||||
| max torque, lb. (Nm) | 192 (261) | 259 (352) | 286,5 (390) | 282,5 (384) | |||||||
| displacement, cu. in. (cm3) | 268,5 (4400) | 268,5 (4400) | 268,5 (4400) | 268,5 (4400) | |||||||
| nr. of cylinders / Turbocharged | 4 / no | 4 / yes | 4 / yes | 4 / yes | |||||||
| vertical sincer | § | § | § | § | |||||||
| low-mounted silencer | • | • | • | • | • | • | • | • | |||
| fuel tank capacity, gal. (lt.) | 21,3 (80) | 21,3 (80) | 21,3 (80) | 21,3 (80) | |||||||
Key: • standard § option - not available * power estimated by Manufacture
DASHBOARD, SIDE GEAR LEVERS FOR MAXIMUM COMFORT AND HI-DRIVE HYDROSTATIC STEERING
The stylish dashboard features analog instruments for simple and fast reading. The gear and reverse shuttle levers are located on the driver’s side in forward position for optimum comfort, in accordance with the latest tractor technology. The HI-DRIVE hydrostatic steering levers activate the steering clutches enabling smooth and accurate steering control.
Driving seat on suspended platform.
The driving seat mounted on a platform suspended on silent-blocks features an adjustable sprung seat for maximum comfort when working on rough grounds. The valance panels on the driver’s sides are designed to match perfectly with the rounded line of the hood and are equipped with handles which can be used as armrests or handholds for increased comfort. The foldable two-post ROPS are ideally suited for working in canopy orchards and vineyards.
Powerful hydraulic system and auxiliary valve versatility.
The hydraulic system provides a maximum total flow of 17 GPM (66 l/min). The simple- and double-acting auxiliary valves can be conveniently operated by levers located on the driver’s right. Easy-to-access high-quality quick-release couplings ensure greater versatility and improved tractor productivity.
DIMENSIONS AND WEIGHTS
| TREKKER 80 | TREKKER 90 | TREKKER 100 | TREKKER 105 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Weights and dimensions | F | M | F | M | F | M | F | M | |||
| A max. length, in. (mm) | 138 (3500) | 138 (3500) | 138 (3500) | 138 (3500) | 138 (3500) | 138 (3500) | 138 (3500) | 138 (3500) | |||
| B min. width, in. (mm) | 57,5 (1460) | 65,5 (1660) | 57,5 (1460) | 65,5 (1660) | 57,5 (1460) | 67 (1700) | 57,5 (1460) | 67 (1700) | |||
| C height over hood, in. (mm) | 46 (1170) | 46 (1170) | 46 (1170) | 46 (1170) | 46 (1170) | 46 (1170) | 46 (1170) | 46 (1170) | |||
| D height to ROPS, in. (mm) | 91 (2315) | 91 (2315) | 91 (2315) | 91 (2315) | 91 (2315) | 91 (2315) | 91 (2315) | 91 (2315) | |||
| E tracks, in. (mm) | 43 (1100) | 51 (1300) | 43 (1100) | 51 (1300) | 43 (1100) | 51 (1300) | 43 (1100) | 51 (1300) | |||
| F wheelbase, in. (mm) | 65 (1650) | 65 (1650) | 65 (1650) | 65 (1650) | 65 (1650) | 65 (1650) | 65 (1650) | 65 (1650) | |||
| G ground clearance, in. (mm) | 12,5 (320) | 12,5 (320) | 12,5 (320) | 12,5 (320) | 12,5 (320) | 12,5 (320) | 12,5 (320) | 12,5 (320) | |||
| H track shoe width STD, in. (mm) | 14 (360) | 14 (360) | 14 (360) | 14 (360) | 14 (360) | 15,5 (400) | 14 (360) | 15,5 (400) | |||
| weight in running order (without ballast), lb. (Kg) | 8360 (3800) | 8360 (3800) | 8360 (3800) | 8360 (3800) | 8426 (3830) | 8350 (3900) | 8426 (3830) | 8350 (3900) | |||
