The true specialist

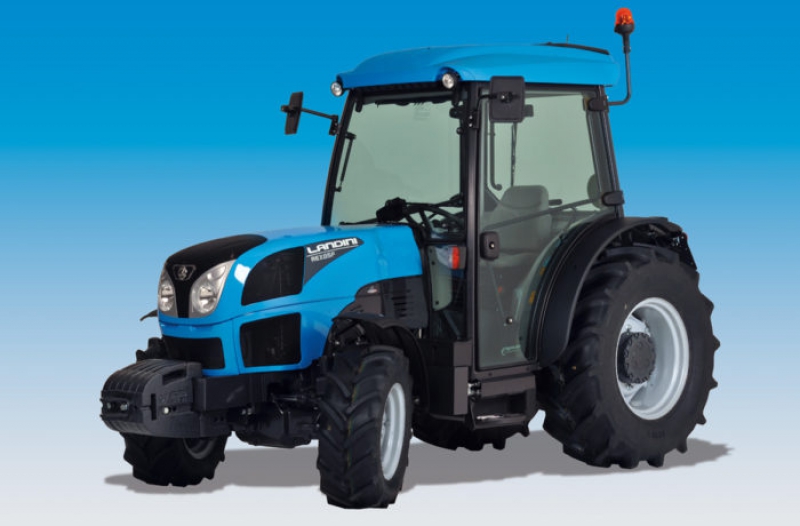

The Rex F range has been completely renovated to provide ultimate performance, improved ergonomics, maximum comfort and unequalled safety. The renovation work consists in a redesigned cab roof, a tilting hood restyling with integrated nicely shaped headlights, and a complete re-vamping of the cockpit, where a new and more ergonomic control layout provides maximum roominess for the operator, thus responding to specialist needs in an increasingly more professional way. An improved PTO engagement, a more precise adjustment of power lift sensitivity, the availability of front power lift and PTO as well as new hydraulic options underscore the evolution of this range... Thanks to its innovating features the Rex F series, available in both cab and platform versions, is an outstanding all-round performer providing maximum reliability, utmost versatility and excellent manoeuvrability in any soil condition, in any specialized crop, with any sort of implements. A reduced steering radius further enhances performance and productivity where space is at a premium. The new Rex F series, entirely renewed, comes with a transmission featuring 4 speeds over 3 ranges, providing a total of 12FW+12REV speeds, and with mechanical reverse shuttle at the driving wheel. A creeper can be fitted as an option to achieve 16FW+16REV speeds. In addition to the new technologies and options available, the Rex F Series comes with new Perkins 1004C (Tier 2) 4 cylinder engines delivering 68 and 81,5 HP/ISO power ratings, and ensuring utmost reliability, enhanced efficiency, thus providing outstanding performance and torque backup at lower running costs. A product range combining performance, reliability, comfort and design. This is the great strength of Rex F tractors.
Perkins 1004C (Tier 2) 4 cylinder
In addition to the new technologies and options available, the Rex F series comes with new Perkins 1004C (Tier 2) 4 cylinder engines delivering 68 and 81,5 HP/ISO power ratings, and ensuring utmost reliability, enhanced efficiency, thus providing outstanding performance and torque backup at lower running costs.
| REX 75 F | REX 85 F | |
|---|---|---|
| “TIER 2” Perkins direct-injection engine | 1104C-44 | 1104C-44 |
| Max power ISO [CV/kW] | 74/54,5 | 79/58 |
| Rated speed rpm | 2200 | 2200 |
| Max Torque [Nm] | 273 | 292 |
| Displacement / Cylinders [cm3] | 4400 / 4 | 4400 / 4 |
| Fuel tank capacity Std+Opt lt | 43 + 25 | 43 + 25 |
Transmission
The new Rex F series, entirely renewed, comes with a transmission featuring 4 speeds over 3 ranges, providing a total of 12FW+12REV speeds, and with mechanical reverse shuttle at the driving wheel. A creeper can be fitted as an option to achieve 16FW+16REV speeds.
NEW “TOTAL VIEW” CAB FOR AN ULTIMATE ALL-ROUND VISIBILITY
The first thing an operator can appreciate when getting into a rex cockpit is the all-round visibility of the “total view” cab provided by the all-glass side doors hinged onto the rear post. the interiors, completely redesigned, stylish and accurately finished, are mainly made of modern composite materials featuring an automotive design. control layout has been further improved to provide more living-space for the operator. the pneumatic seat, the new height adjustable steering wheel further enhance tractor manoeuvrability thus making driving a pleasure. the pressurised cab, featuring an improved ventilation/ heating and air-conditioning system installed on the cab roof and integrated by a filter designed to purify the air inside the cab, ensures maximum comfort for the driver in terms of safety and health natural ventilation is ensured by openable front and rear windscreens. the driving area of the platform version has also been revamped according to the same standards adopted on the cab models to a rex cockpit.
HIGH PERFORMANCE HYDRAULICS AND GREAT AUXILIARY CONTROL VALVE VERSATILITY
The hydraulic system is powered by a double pump providing a maximum total flow of 82 l/min. the system comes as standard with 2 single- and double-acting auxiliary control valves (including a floating one) on the f and ge model, and with 3 on the gt version. the system can be optionally equipped with an electro-hydraulically controlled three-ways flow divider operated by a lever fitted on the r.h. console incorporating three pushbuttons. according to the button being selected, it can alternatively operate the hydraulic levelling ram, the hydraulic top link or one control valve. as an alternative, a triple pump with 3 front auxiliary valves controlled by a joystick can be fitted on request to operate the front implements. easily accessible high-quality quick-release rear couplings ensure optimum comfort of operation and improved tractor productivity.
Dimentions and Weights
| REX 75 | REX 85 | |||||
|---|---|---|---|---|---|---|
| F | F | |||||
| Rear Tyres | 14.9R28 | 14.9R28 | ||||
| Min. Lenght 2RM and 4RM [mm] | 4009 | 4009 | ||||
| Min. Width [mm] | 1319 | 1319 | ||||
| Wheelbase 2RM [mm] | 2174 | 2174 | ||||
| Wheelbase 4RM [mm] | 2134 | 2134 | ||||
| Heigth over cab [mm] | 2250 | 2250 | ||||
| Ground Clearance 4RM [mm] | 380 | 380 | ||||
| Height to Steering Wheel [mm] | 1450 | 1450 | ||||
| Weight 2RM [Kg] | 2615 | 2615 | ||||
| Weight 4RM [Kg] | 2845 | 2845 | ||||
