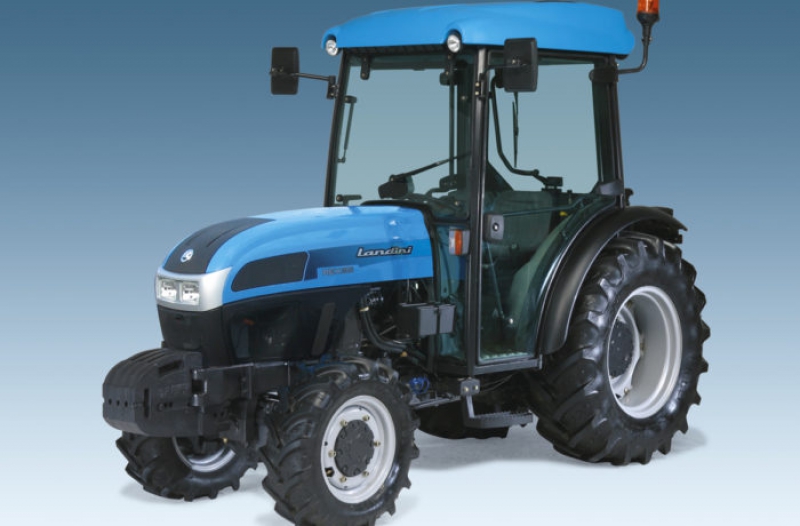

REX V AND S TRACTORS, SPECIALISTS IN
The quality of vineyard and orchard cultivations depends on the use of extremely specialized machines, ones that are able to meet all the specific requirements of these types of crops. This is why Landini has developed the innovative Rex series: a range of tractors exclusively dedicated to vineyards and orchards, and designed paying special attention to the suggestions that came from farmers. Available in the V version for vineyards and the S version for narrow orchards, this ultra-compact tractor range has been redesigned to offer improved gearbox controls, a new steering wheel with extra tilt adjustment and a new rounded hood with integrated rectangular headlights. The folding ROPS, available on the platform version, allows the operators to manoeuvre with ease when space is at a premium. In addition, the front axle with 55° steering angle and the integral braking action on all four wheels, make the Rex tractors extraordinarily easy to handle. Powered by a new Perkins Tier 3 4-cylinder turbocharged engine delivering 83 hp, the range features a modular transmission that provides up to 32 forward and 16 reverse speeds with creep option and a power lift with 5720 lb. (2.600 Kg) lift capacity. Despite their compact dimensions, the Landini Rex tractors are equipped with a roomy, pressurized, air-conditioned cab offering the operators a comfortable environment, while providing exceptional all-round visibility. With a Rex tractor in the field, your productivity is guaranteed to increase.
Brochure available in english, french and spanish.
NEW PERKINS TIER 3 ENGINE AND NEW TILT-UP HOOD
The REX V/S tractors are powered by a new, environment friendly Perkins 1104D 4-cylinder turbo engine that delivers 83 HP (ISO rating), while providing low emission levels in accordance with the Tier 3 standards. Specially developed for farming applications, this new engine incorporates state-of-the-art solutions designed to optimize the air-fuel mixture, thereby improving combustion and engine efficiency. Higher horsepower and torque with lower operating costs are thus achieved. The new, fully opening tilt-up hood provides easy access to the engine compartment for routine service and maintenance.
| REX 90 V / S | |
|---|---|
| Perkins Tier 3 direct-injection engine | 1104D-44 |
| max. power (ISO), hp/kW | 83/61 |
| net PTO power (ISO), hp/kW | 70/51,5* |
| max. torque, lb. (Nm) | 258 (352) |
| displacement/no. of cylinders, cu in. (cm3) | 4 / 268 (4400) |
| fuel tank capacity, gal. (lt.) | 11.8 (45) |
* power estimated by manufacturer
SIDE GEAR AND REVERSE SHUTTLE LEVERS FOR MAXIMUM COMFORT
The gear and reverse shuttle levers are located on the driver’s side in ergonomic position and allow 24 FWD + 12 REV speeds to be selected in complete comfort. The reverse shuttle lever allows both reversing all gears of the basic transmission and activating the overdrive which enables a maximum speed of 25 mph (40 kph) to be achieved. The transmission can be optionally integrated with a creeper to obtain a total range of 32 FWD + 16 REV speeds.
EASE OF ACCESS , ERGONOMIC DESIGN AND ALL -ROUND VISIBILITY FOR THE NEW REX S AND V SERIES TRACTOR CAB
Despite their compact dimensions, the new REX S and V tractors feature a comfortable cab with curved windows for extra room and all-glass side doors hinged onto the rear post for all-round visibility. Large access doors allow the operator to enter and exit the cab with ease. The interior is extremely stylish and accurate, with logically-arranged controls according to current ergonomic standards. The adjustable seat and the height adjustable steering wheel further enhance the driving comfort. The heating/ventilation and air-conditioning system is installed on the cab roof and integrated by a filter designed to purify the air inside the cab with considerable benefits for the operator in terms of comfort, safety and health. Natural ventilation is ensured by the openable front and rear windscreens.
HIGH-PERFORMANCE HYDRAULICS AND VERSATIL E AUXILIARY VALVES
The hydraulic system is powered by a double pump providing a maximum total flow of 21.7 GPM (82 l/min) and comprises a mechanical power lift and three auxiliary valves mechanically operated by lever. A triple pump increasi ng the maxi mum flow to 26.7 GPM (101l/min) can be optionally fitted to operate an electronic power lift and three mechanically-controlled auxiliary valves. In this configuration, in addition to the three auxiliary valves supplied as standard, the tractor can be optionally equipped with: a 4th auxiliary valve with hydraulic flow selector to control either the right lifting rod or the lower link stabilisers, a 5th electronically-operated auxiliary valve (4), a 6th leveroperated auxiliary valve for control of hydraulic motors wit h quick-release couplings applied to the front of the tractor. The high-quality quick-release couplings, mounted either on the front or rear of the tractor, ensure optimum comfort of operation and improved tractor productivity.
| REX 90 | ||
|---|---|---|
| V | S | |
| Dimensions and weights (in running order) with tyres 4WD | 12.4 R28 | 13.6 R24 |
| A length (with ballast), in. (mm) | 155 (3932) | 155 (3932) |
| B wheelbase 2 WD, in. (mm) | 83 (2100) | - |
| B wheelbase 4 WD, in. (mm) | 84 (2130) | 84 (2130) |
| C height to cab, in. (mm) | 93 (2370) | 92 (2345) |
| C height to ROPS, in. (mm) | 89 (2280) | 90 (2285) |
| D ground clearance 2 WD, in. (mm) | 16,5 (420) | - |
| D ground clearance 4 WD, in. (mm) | 13 (330) | 10 (260) |
| E min/max overall width, in. (mm) | 45/54 (1140/1377) | 47,5/52 (1213/1313) |
| weight 2 WD (without ballast, with cab), lb. (Kg) | 5643 (2565) | - |
| weight 4 WD (without ballast, with cab), lb. (Kg) | 5665 (2575) | 5863 (2665) |
