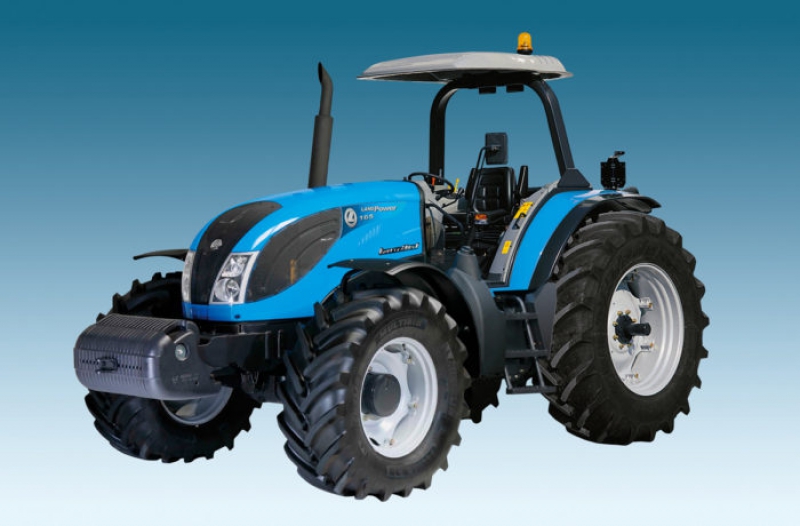

Powerfarm Cab/Plat T0-T3

Powerfarm the essence of modernity

The new Powerfarm series is a range of simple and modern tractors. Available in both platform and cab versions, the Powerfarm tractors are powered by ecofriendly, fuel-efficient Perkins 1104D engines that deliver 83, 92.5 and 102 hp/ISO and meet the Tier 3 emission regulations. Featuring an advanced fuel injection system that optimizes air-fuel mixture and enhances combustion efficiency, these engines combine high power and torque levels with low running costs. The Powerfarm 110 is also available in a turbocharged version powered by a Tier0 1104-44T engine that develops 106.8 hp/ISO. The hood, fully restyled to reflect the new family styling, provides unobstructed view in all directions and opens wide to provide easy access to the engine compartment for service and maintenance. The synchro shuttle transmission offers four gears in three ranges providing 12 speeds forward and 12 reverse. A 30 km/h transmission is available with either an underdrive (standard on the 2WD version) or a creep speed option. An overdrive option with 40 km/h maximum speed is also available for the 4WD models. The Powerfarm also offers a high-clearance version (HC) for both the two- and four-wheel drive models. Rotating the rear drop-down final drives and using special front axles and tall, narrow tyres result in higher belly clearance, making this tractor ideal for working in specialty crops such as rice fields and inter-row crops. The fully-glazed Total View cab with its roof-mounted air conditioning system and logicallyarranged controls offers the operator a functional and comfortable working environment for maximum ease of operation. Offering a wide choice of models and versions, the Powerfarm range is designed for productivity, versatility and comfort.


Tier 3 Perkins 1104d series engines, more power with better fuel economy

The Powerfarm tractors are powered by ecofriendly, fuel-efficient Perkins 1104D engines that deliver 83, 92.5 and 102 hp/ISO and meet the Tier 3 emission regulations. Featuring an advanced fuel injection system that optimizes air-fuel mixture and enhances combustion efficiency, these engines combine high power and torque levels with low running costs. The Powerfarm 110 is also available in a turbocharged version powered by a Tier0 1104-44T engine that develops 106.8 hp/ISO.


POWERFARM
110
STD
 POWERFARM
90
STD    HC
POWERFARM
100
STD     HC
POWERFARM
110
STD    HC

TIER OTIER 3TIER 3TIER 3
Perkins direct-injection engine1104A-44T1104D-44T1104D-44TA1104D-44TA
max. power (ISO), hp/kW106.8/78.583/6192,5/68102 / 75
max. torque, Nm400352363416
displacement,  cm34400440044004400
nr. of cylinders4 Turbo4 Turbo4 turbo aftercooler4 turbo aftercooler
fuel tank capacity,   Lt102102102102





Synchro Shuttle transmission.

The synchro shuttle transmission offers four gears in three ranges providing 12 speeds forward and 12 reverse. A 30 km/h transmission is available with either an underdrive (standard on the 2WD version) or a creep speed option. An overdrive option with 40 km/h maximum speed is also available for the 4WD models.



“Total View” cab for all-round visibility

The fully-glazed Total View cab with its roof-mounted air conditioning system and logicallyarranged controls offers the operator a functional and comfortable working environment for maximum ease of operation. Offering a wide choice of models and versions, the Powerfarm range is designed for productivity, versatility and comfort.


High-Performance Hydraulics for hitch and remote valves

The mechanical hitch provides a maximum total flow of 82 litres/min. The hitch, equipped with a cat. 2 three-point linkage, provides position, draft, intermix and float control functions and ensures a maximum lift capacity of 4350 kg. The system features up to 4 remote valves, two of whichcontrolled by Joystick for front loader work, and two controlled by standard levers conveniently located beside the driver’s seat.


dimensions and weights

Dimensions in running orderPOWERFARM
110 (T0)STD
POWERFARM
90STD                  HC
POWERFARM
100STD                   HC
POWERFARM
110STD                    HC
Front tyres12.4-2412.4-2412.4-2412.4-24
Rear tyres18.4-3018.4-3018.4-3018.4-30
A length (with ballast), in. (mm)163.8 (4160)162.8 (4136)162.8 (4136)163.8 (4160)
B min. width, in. (mm)81.2 (2063)81.2 (2063)81.2 (2063)81.2 (2063)
C wheelbase 2WD/4WD,(mm)2365/2340 2341/2316     2255/2230 2341/2316     2255/2230 2365/2340     2255/2230
D height over cab, in. (mm)100.4 (2550)100.4 (2550)100.4 (2550)100.4 (2550)
E ground clearance 4WD, in. (mm)17.8 (453)17.8 (453)17.8 (453)17.8 (453)
weight 4WD (w/o ballast) + 150kg cab.(kg)34503330             34603330                  34603450                3500
