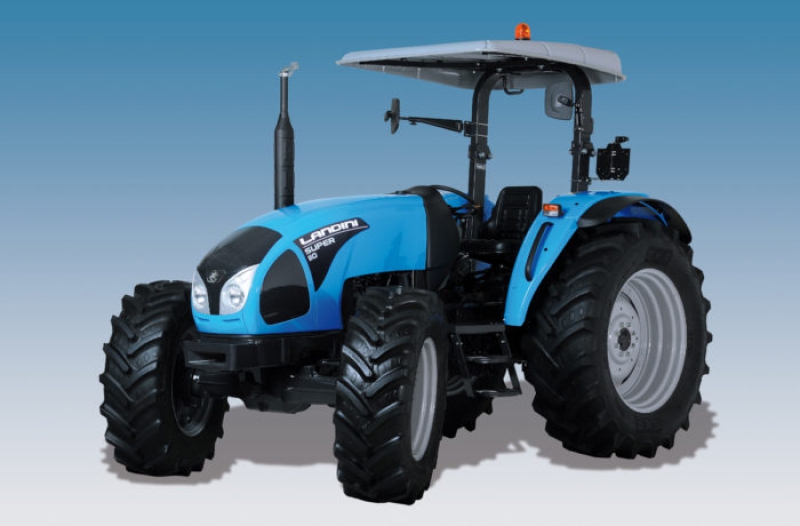

Super T0-T3 Series – Simple, functional, economic
The new Super T0-T3 tractor family from Landini has been designed to replace the popular Globalfarm series. Supplied in both two- and four-wheel drive versions, this low-cost tractor combines a simple design with excellent performance and functionality. Six models in the range are all powered by Perkins 1104 series four-cylinder engines that deliver high torque backup and quiet, eco-friendly performance while ensuring excellent fuel economy. The Super 90B, 100B and 110B models feature Tier 0 engines, while the Super 90, 100 and 110 models are powered by engines meeting Tier 3 emissions regulations.
PERKINS ENGINES
Six models in the range are all powered by Perkins 1104 series four-cylinder engines that deliver high torque backup and quiet, eco-friendly performance while ensuring excellent fuel economy. The Super 90B, 100B and 110B models feature Tier 0 engines, while the Super 90, 100 and 110 models are powered by engines meeting Tier 3 emissions regulations.
| Super 90B TIER0 | Super 100B TIER0 | Super 110B TIER0 | Super 90 TIER3 | Super 100 TIER3 | Super 110 TIER3 | |
|---|---|---|---|---|---|---|
| DIRECT-INJECTION PERKINS ENGINE | 1104A-44 | 1104A-44T | 1104A-44T | 1104D-44T | 1104D-44T | 1104D-44T |
| MAX POWER ISO HP/KW | 87.7 / 64.5 | 97.3 / 71.5 | 106,8 / 78,5 | 81.2/ 60.5 | 92,5 / 68 | 100.5 / 74.9 |
| RATED SPEED RPM | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 |
| MAX TORQUE LB (NM) | 225 (305) | 270 (366) | 295 (400) | 255 (345) | 283 (384) | 307 (416) |
| MAX TORQUE SPEED RPM | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 |
| BORE/STROKE IN.(NM) | 4/5(105/127) | 4/5(105/127) | 4/5(105/127) | 4/5(105/127) | 4/5(105/127) | 4/5(105/127) |
| DISPLACEMENT/Nr. OF CYLINDERS CU.IN.CM3 | 268,5(4400) /4TURBO | 268,5(4400) /4TURBO | 268,5(4400) /4TURBO | 268,5(4400) /4TURBO | 268,5(4400) /4TURBO AFT. | 268,5(4400) /4TURBO AFT. |
| COMPRESSION RATIO | 19,3:1 | 19,3:1 | 19,3:1 | 19,3:1 | 19,3:1 | 19,3:1 |
| WATER COOLING | • | • | • | • | • | • |
| AIR FILTER | • | • | • | • | • | • |
| FUEL TANK CAPACITY GAL(LT) | 24 (90) | 24 (90) | 24 (90) | 24 (90) | 24 (90) | 24 (90) |
• STANDARD
Standard modular transmission
The Super T0-T3 tractor range features as standard a modular transmission with four gears in three ranges offering 12 forward and 4 reverse speeds. The standard gearbox can be optionally equipped with a steering-column synchro shuttle to provide 12 forward and 12 reverse speeds. An optional creeper with four creep speeds provides a total of 16 forward and 16 reverse gears and enables ground speeds as low as 320 m/h.
The driving position
The two-post ROPS can be optionally equipped with a sun canopy.The driving position features a sprung seat and an adjustable steering wheel for enhanced operator comfort. The controls are ergonomically arranged on the driver’s sides for maximum comfort and ease of operation. The gearshift lever on the right-hand side and the range lever on the left-hand side are easy to reach, while the shuttle lever adjacent to the steering wheel enables quick shifting from forward to reverse.
dimensions and weights
| Super 90B TIER0 | Super 100B TIER0 | Super 110B TIER0 | Super 90 TIER3 | Super 100 TIER3 | Super 110 TIER3 | |
|---|---|---|---|---|---|---|
| FRONT TYRES 2WD | 9.00-16 | 9.00-16 | 9.00-16 | 9.00-16 | 9.00-16 | 9.00-16 |
| FRONT TYRES 4WD | 12.4-24 | 12.4-24 | 12.4-24 | 12.4-24 | 12.4-24 | 12.4-24 |
| REAR TYRES 4WD | 18.4-30 | 18.4-30 | 18.4-30 | 18.4-30 | 18.4-30 | 18.4-30 |
| TOTAL LENGHT WITHOUT BALLAST IN. mm | 150 (3810) | 150 (3810) | 150 (3810) | 150 (3810) | 150 (3810) | 150 (3810) |
| WHEELBASE 2WD/4WD IN. mm | 87.5/91.2 (2224/2317) | 88.5/92.1 (2247/2340 | 88.5/92.1 (2247/2340 | 87.5/91.2 (2224/2317) | 87.5/91.2 (2224/2317) | 88.5/92.1 (2247/2340 |
| HEIGHT AT STEERING WHEEL IN. mm | 67.7 (1720) | 67.7 (1720) | 67.7 (1720) | 67.7 (1720) | 67.7 (1720) | 67.7 (1720) |
| MAX GROUND CLEARANCE 4WD IN. mm | 19.9 (430) | 19.9 (430) | 19.9 (430) | 19.9 (430) | 19.9 (430) | 19.9 (430) |
| HEIGHT TO SAFETY FRAME IN. mm | 101.5 (2580) | 101.5 (2580) | 101.5 (2580) | 101.5 (2580) | 101.5 (2580) | 101.5 (2580) |
| MINIMUM WIDTH IN. mm | 81.2(2063) | 81.2(2063) | 81.2(2063) | 81.2(2063) | 81.2(2063) | 81.2(2063) |
| MIN.TURN.RADIUS (WITHOUT BRAKES) 2WD/4WD IN. mm | 157.4 (4000) / 181 (4600) | 157.4 (4000) / 181 (4600) | 157.4 (4000) / 181 (4600) | 157.4 (4000) / 181 (4600) | 157.4 (4000) / 181 (4600) | 157.4 (4000) / 181 (4600) |
| WEIGHT (WITHOUT BALLAST) 4WD LB.(Kg) | 7414 (3370) | 7590 (3450) | 7590 (3450) | 7414 (3370) | 7590 (3450) | 7590 (3450) |
