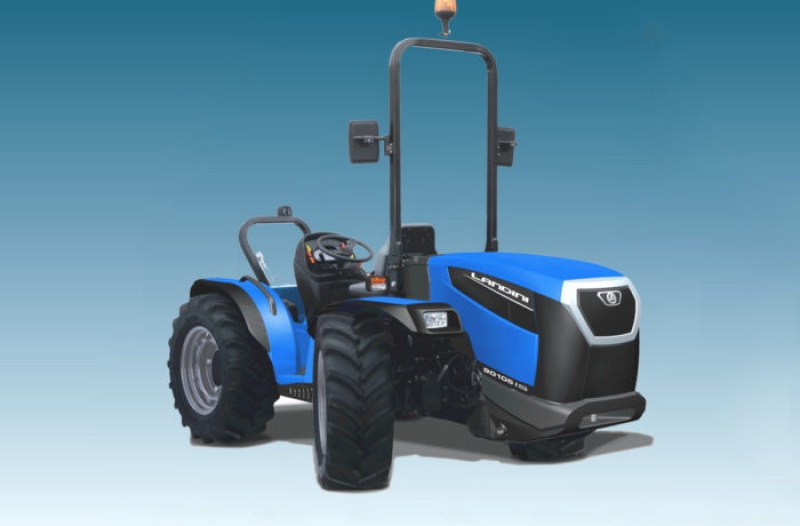

9000 Series, powerful and reversible for maximum flexibility
The 9000 Series equal-wheel tractor from Landini come in two versions: IS with front wheel steering and AR with articulated steering. Both versions come standard with reversible driving position. The two models in the range, the 9095 and 90105, are powered by FPT Tier 3 engines that deliver 88 and 95 hp. The 9000 Series tractors feature as standard a 16+16 basic gearbox with mechanical reverse shuttle and creeper. The rear hitch has a lift capacity of 2300 kg. The hydraulic system supplies a flow rate of 50+31 l/m to operate up to four rear remote valves (two standard, two optional). A joystick control is available on request to operate the remote valves. The 9000 Series tractors are available in either cab or platform versions.
FPT Tier 3 engines
The two models in the range, the 9095 and 90105, are powered by FPT Tier 3 engines that deliver 88 and 95 hp.
| 9095 IS-AR | 90105 IS-AR | |
|---|---|---|
| constructor | FPT | FPT |
| direct injection | mechanical | mechanical |
| model | F 5 A | F 5 A |
| max. power (ISO rating) [HP / kW] | 88/64,7 | 95,2/70 |
| rated speed | 2300 | 2300 |
| max. torque | 350 | 390 |
| max. torque speed | 1300 | 1250 |
| displacement cm3 | 3200 | 3200 |
| cylinders / valves | 4Turbo / 8 | 4Turbo / 8 |
| water cooling | STD | STD |
| fuel tank capacity litres | 60 | 60 |
standard gearbox 16FWD + 16REV
max. speed 40 km/h
DIMENSIONS AND WEIGHTS
| 9095 IS-AR | 90105 IS-AR | |
|---|---|---|
| overhang mm | 1260 | 1260 |
| overall lenght mm | 3735 | 3735 |
| width front / rear min/max mm | 1393 / 1750 | 1393 / 1750 |
| wheelbase mm | 1495 | 1495 |
| height to ROPS min/max mm | 2455 / 2425 | 2455 / 2425 |
| height to steering wheel mm | 1265 | 1265 |
| ground clearance min/max mm | 310 / 295 | 310 / 295 |
