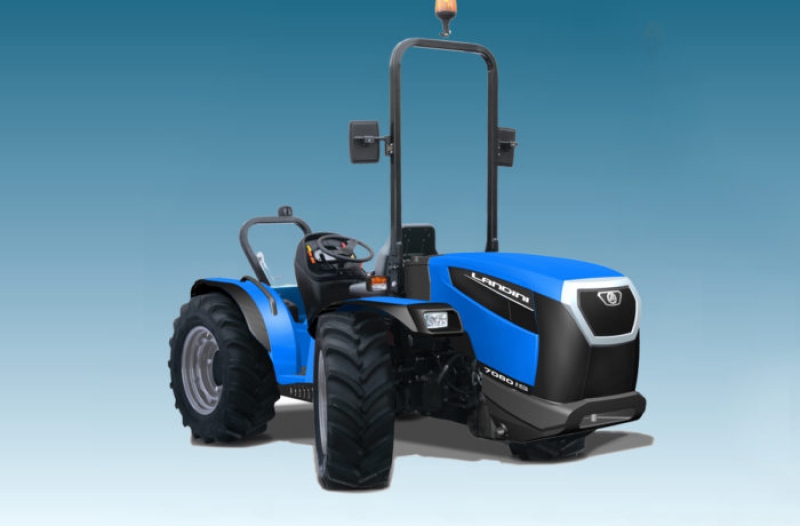

7000 Series, sheer versatility
The 7000 Series equal-wheel tractors are available in two versions: IS with front wheel steering and AR with articulated steering. Both versions come standard with reversible driving position. The two models in the range, the 7070 and 7080, are powered by FPT Tier 3 engines that deliver 65 and 75 hp. The 7000 Series tractors feature as standard a 16+16 basic gearbox with mechanical reverse shuttle and creeper. The rear hitch has a lift capacity of 2300 kg. The hydraulic system supplies a flow rate of 50+31 l/m to operate up to four rear remote valves (two standard, two optional). A joystick control is available on request to operate the remote valves. The 7000 Series tractors are available in either cab or platform versions.
FPT Tier 3 engines
The two models in the range, the 7070 and 7080, are powered by FPT Tier 3 engines that deliver 65 and 75 hp.
| 7070 IS-AR | 7080 IS-AR | |
|---|---|---|
| Engine | TIER3 | TIER3 |
| constructor | FPT | FPT |
| direct injection | mechanical | mechanical |
| model | F 5 A | F 5 A |
| Max. power (ISO rating) HP / kW | 65,3/48 | 74,8/55 |
| rated speed rpm | 2300 | 2300 |
| max. torque rpm | 265 | 310 |
| max. torque spedd rpm | 1250 | 1250 |
| displacement cm3 | 3200 | 3200 |
| cylinders / valves | 4Turbo / 8 | 4Turbo / 8 |
| water cooling | STD | STD |
| fuel tank capacity | 60 | 60 |
standard gearbox 16FWD + 16REV max. speed 40 km/h
driving position
Automatically reversible seat and controls
DIMENSIONS AND WEIGHTS
| 7070 IS-AR | 7080 IS-AR | |
|---|---|---|
| overhang mm | 1260 | 1260 |
| wheelbase mm | 1495 | 1495 |
| overall length mm | 3735 | 3735 |
| ground clearance min/max mm | 310 / 295 | 310 / 295 |
| height to steering wheel | 1265 | 1265 |
| height to ROPS min/max | 2455/ 2425 | 2455/ 2425 |
| track min/max mm | 1106 / 1490 | 1106 / 1490 |
| width min/max mm | 1393 / 1750 | 1393 / 1750 |
