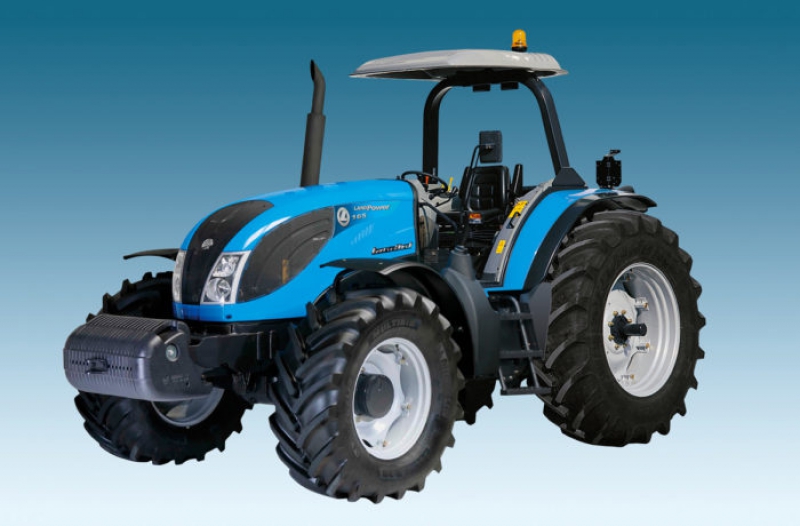

The TIER3 LANDPOWER TECHNO Series has been conceived to provide pioneering technical features and unequalled mechanical and hydraulic solutions. The new hood, in line with the Landini family style, provides total visibility and, thanks to its forward tilting feature, it also provides easy access to the engine for routine service and maintenance. All models are powered with new F.P.T., NEF 2V, 6 cylinder turbo engines equipped with air-to-air Intercooler , with 117, 133 and 157 HP, ISO power ratings, which, besides providing exceptional torque and power levels, also comply with the Tier 3 standards governing gas emissions. The Speedsix basic gearbox with 6 synchronized speed gears and 3 ranges (High-Medium-Low), when used in conjunction with creeper and synchronised mechanical reverse shuttle, provides a total of 36 FWD+36REV speeds. The new hydraulic circuit provides a maximum total flow rate of 106 lt/min. The system features 3 auxiliary control valves as standard plus 2 available on request for enhanced versatility and increased implement efficiency. The cat. 2 and 3 power lift, featuring a lifting capacity of up to 8400 kg. and rationally-arranged controls located in ergonomic position on the R.H. console, incorporates all main functions and regulations to ensure maximum comfort and fingertip control of implements. The ample and comfortable driver’s area features a fully adjustable sprung seat mounted on a silent-blocks suspended platform The height adjustable steering wheel and the more ergonomic and functional layout of all controls further contribute towards increasing the operator’s comfort. The 2-post folding safety frame can be optionally equipped with sunroof.
F.P.T NEF 2V SERIES TIER 3 ENGINES WITH NEW TILTING HOOD.
The four Landpower models are powered by the very latest generation of F.T.P. NEF 6-cylinder turbo engines with air-to-air intercooler, meeting the TIER 3 emission standards. The new engines deliver 117, 133, 141 and 157 Hp (ISO ratings), respectively, while providing exceptional torque levels.
|F.P.T. TURBO/INTERCOOLER AIR-AIR (TIER 3)||NEF 2V||NEF 2V||NEF 2V||NEF 2V|
|MAX. ENGINE POWER (ISO), HP/KW||117/86||133/98||141/104||157/116|
|NET PTO POWER (ISO), HP/KW||100/73*||114/83*||120/88*||135/99*|
|MAX.TORQUE, LB. (NM)||380 (515)||435 (590)||461 (625)||509 (691)|
|NR. OF CYLINDERS/DISPLACEMENT, CU. IN. (CM3)||6728 / 6||6728 / 6||6728 / 6||6728 / 6|
|FUEL TANK CAPACITY, GAL. (LT)||68 (260)||68 (260)||68 (260)||68 (260)|
TOP-TRONIC TRANSMISSION (108FWD + 36REV) WITH DE-CLUTCH CONTROL AND REVERSE POWER SHUTTLE
The Top-Tronic transmission triples under load the 36 speeds of the basic transmission offering a total choice of 108 forward 36 reverse gears. The Top-Tronic is activated with the green buttons integrated in the gear lever. The de-clutch control (orange button on the gear lever) and the reverse Power Shuttle (lever under the steering wheel) enable clutch-less engagement and reversal of all gears.
The hydraulic system provides a maximum total flow rate of 33 gpm (125 lt/min).
The system features 5 auxiliary valves of different type; controlled by joystick for front loader use (1); controlled by lever (2); with electrohydraulic flow diverter controlled by button (3). The flow diverter enables to alternately activate the right lifting rod, the top link or the valve itself, thus bringing the number of rear auxiliary valves from 5 to 7 for enhanced versatility and increased implement efficiency.
DIMENSIONS AND WEIGHTS
|STD FRONT TYRES||380/70R28||420/70R28||480/65R28||480/65R28|
|STD REAR TYRES||480/70R38||520/70R38||600/65R38||600/65R38|
|HEIGHT TO SAFETY FRAME||109 (2780)||109 (2780)||110,5 (2810)||110,5 (2810)|
|WHEELBASE, IN. (MM)||110 (2800)||110 (2800)||110 (2800)||110 (2800)|
|MAX. LENGTH (WITH BALLAST WEIGHTS), IN. (MM)||202,5 (5145)||202,5 (5145)||214,5 (5450)||214,5 (5450)|
|GROUND CLEARANCE, IN. (MM)||20.5 (520)||20.5 (520)||21,5 (550)||21,5 (550)|
|MIN/MAX WIDTH, IN. (MM)||81/100 (2060/2560)||87/103 (2212/2612)||94/113 (2384/2884||94/113 (2384/2884)|
|TOTAL WEIGHT (WITHOUT BALLAST WEIGHTS), LB.(KG)||12760 (5800)||12760 (5800)||13090 (5950)||13750 (6250)|
