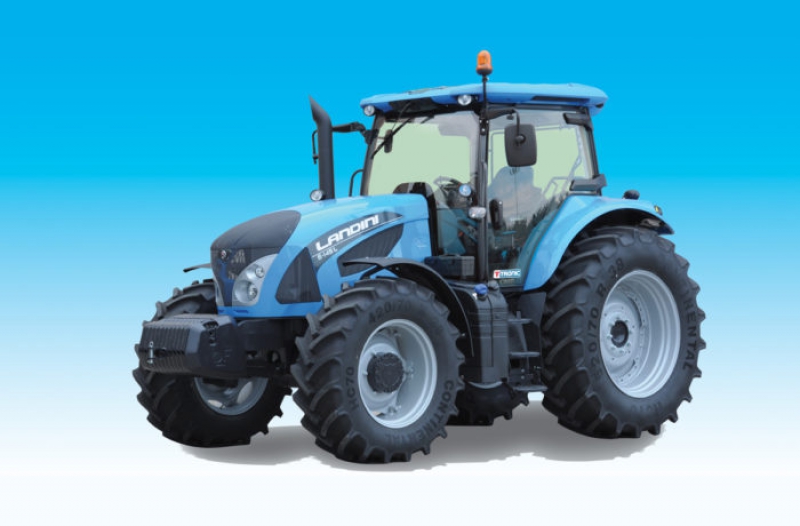

New 6L Series, a reliable successor to the Landpower
Developed to replace the popular Landpower range, the 6L Series has been launched on the European market in three models: the 6-145L, 6-160L and 6-175L. Powered by 16-valve, 4.5-liter Tier 4 Interim engines with SCR system that deliver 143, 163 and 176 hp, these tractors are ideally suited for all kinds of field work, including heavy-duty applications. The tilt-up hood opens wide to provide easy access to the engine compartment for routine service and maintenance and the coolers located in front of the radiator open fully from a single latch to provide easy cleaning in dusty conditions. Featuring a capacious 270-liter fuel tank, with the AdBlue tank holding up to 38 litres, these fuel-efficient tractors offer longer run times between refuelling stops. The 6L Series comes standard with synchro shuttle. A power shuttle with 3-speed powershift is available on request. The transmission can be optionally equipped with a creep gearbox that delivers speeds as low as 410 m/h. The hydraulic system delivers a flow rate of 87 l/min to operate all hydraulic functions plus 38 l/min for the steering circuit. The system offers up to five electro-hydraulic remote valves and a ground speed PTO as standard. The 6L range features an electronically-controlled rear hitch with a maximum lift capacity of 8400 kg. A front hitch capable of lifting up to 3500 kg and a front PTO are also available as an option. To further increase operator comfort, a new suspended axle is optionally available to ensure maximum ride comfort on road and in the field. Combining powerful performance and modern design, the 6L Series offers a fully restyled cab with new colours for the interior and sports the distinctive family style that runs across all Landini tractors of the latest generation.
TIER 4 INTERIM FPT-NEF ENGINES WITH SCR SYSTEM
The three models in the 6L T4i range are powered by the 4.5-liter, 4-cylinder turbo FPT-NEF engines with 16-valve cylinder head and common rail injection system that deliver from 143 to 176 hp. The optimised electronic fuel injection and the enhanced combustion efficiency, combined with the SCR system, allow these engines to deliver exceptional power and torque backup, while reducing fuel consumption. In addition, a 270-liter fuel tank and a 38-liter AdBlue tank allow for many hours of fieldwork without refuelling. The tilt-up hood opens wide to provide easy access to the engine compartment for service and maintenance and the coolers located in front of the radiator open fully from a single latch to provide easy cleaning in dusty conditions.
| 6-145 L | 6-160 L | 6-175 L | |
|---|---|---|---|
| TIER 4 interim / STAGE 3B | NEF 4 CYL CR TAA | NEF 4 CYL CR TAA | NEF 4 CYL CR TAA |
| MAX ENGINE POWER AT 1900 RPM (ISO TR 14396 ECE R120) HP/KW | 143 / 105 | 163 / 120 | 176 / 129 |
| RATED ENGINE POWER AT 2200 RPM (ISO TR 14396 ECE R120) HP/KW | 131 / 96 | 150 / 110 | 170 / 125 |
| MAX. TORQUE AT 1500 RPM (ISO TR 14396 ECE R120) LB (NM) | 590 | 676 | 680 |
| BORE / STROKE IN (MM) | 104 / 132 | 104 / 132 | 104 / 132 |
| DISPLACEMENT CU. IN. (CM3) / NO. OF CYLINDERS / NO. OF VALVES | 4500 / 4 / 16 | 4500 / 4 / 16 | 4500 / 4 / 16 |
| EXHAUST SYSTEM S.C.R. | • | • | • |
| CAPACITY ADBLUE GAL. (LT) | 38 | 38 | 38 |
| FUEL TANK CAPACITY GAL. (LT) | 270 | 270 | 270 |
• standard
TWO TRANSMISSIONS FOR MAXIMUM FLEXIBILITY: SPEED SIX AND T-TRONIC
The Speed Six transmission features six speeds in three ranges providing a total of 18 forward and 18 reverse speeds with synchro shuttle. Optionally, the basic gearbox can be combined with a T-Tronic transmission that can be shifted on the go using the green buttons integrated into the gear lever and triples the number of gears, providing a total of 54 forward and 18 reverse speeds. The De-clutch control (orange button on the gear lever) and the shuttle control lever adjacent to the steering wheel allow the operator to change gear and shift from forward to reverse without using the clutch pedal. A creep transmission is available as an option for both configurations.
NEW MASTER CLASS CAB FOR UNMATCHED VISIBILITY AND COMFORT
Featuring a four-post design with rear hinged doors, the new Master Class cab offers ease of access to the driver’s seat and unmatched allround visibility. The interior has been refreshed with a sleek, modern design and a new colour scheme. The driving position features an air suspension seat with multiple adjustments, a telescopic tilt-adjustable steering column and ergonomically- designed, intuitive-to-use controls for ease of operation. Perfectly sound-proofed and equipped with a highly-efficient air conditioning system, the cab of the 6L tractor offers a comfortable environment for long hours in the field. A transparent roof hatch provides extra visibility for loader operations. Ten powerful halogen lights offer excellent illumination for night work.
HIGH-PERFORMANCE HYDRAULIC SYSTEM WITH VERSATILE REMOTE VALVES
The hydraulic system offers a total flow rate of 125 l/min. It features up to five remote valves for maximum versatility. Two remote valves are controlled by a joystick controller to operate either a front hitch or a front loader, while the remaining three valves are controlled by levers. The remote valves are also used to operate the hydraulic right lifting rod and top link supplied as options. The high-quality quick-release couplings, mounted on the rear of the tractor, are easily accessible for convenient and fast operation.
DIMENSIONS AND WEIGHTS
| 6- 145L | 6-160L | 6-175L | |
|---|---|---|---|
| FRONT TYRES | 480/65R28 | 480/65R28 | 480/65R28 |
| REAR TYRES | 600/65R38 | 600/65R38 | 600/65R38 |
| HEIGHT OVER CAB MM | 2890 | 2890 | 2890 |
| WHEELBASE 4RM MM | 2724 | 2734 | 2734 |
| MAX. LENGTH (WITH BALLAST WEIGHTS) MM | 5270 | 5270 | 5270 |
| GROUND CLEARANCE MM | 500 | 500 | 500 |
| MIN/MAX WIDTH | 2220/2520 | 2220/2520 | 2220/2520 |
| TOTAL WEIGHT (WITHOUT BALLAST WEIGHTS) LB KG | 6000 | 6150 | 6150 |
