the warhorse is raring to go again.

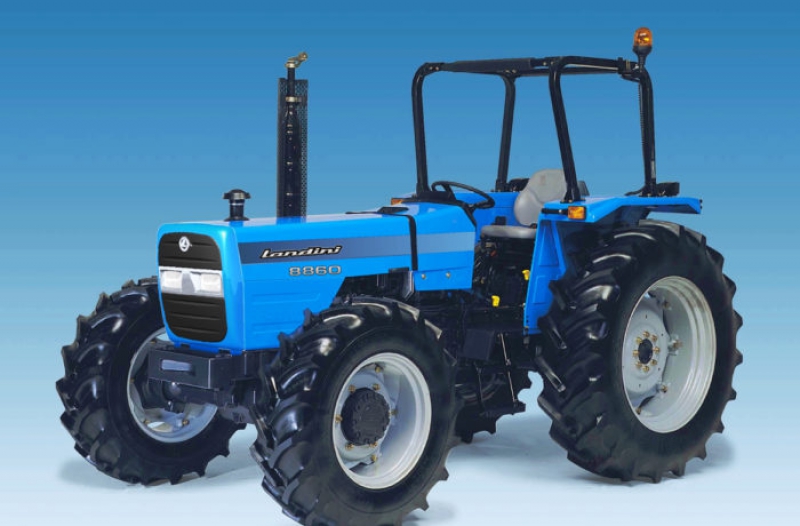

The 60 Series tractors (7865 and 8865) with either two or four-wheel drive are the warhorses of Landini’s stable: never tamed and always raring to go, they are ideally suited for allround use. Featuring a simple, economy–driven design, the 60 Series tractors deliver excellent performance and functionality for maximum reliability and extended life. The new environment-friendly Perkins “TIER 2” 1104C series 4-cylinders engines offer high fuel efficiency, low noise and reduced emissions while delivering a high torque backup. The driver’s seat is equipped with a fully adjustable sprung seat to maximise the driving comfort.
Brochure available in english, french and spanish.
Perkins 1100A series engines
The 60 Series tractors (7865 and 8865 models) are equipped with the new Perkins 1104A 4-cylinder engines. The new engines deliver 74 and 81.6 HP (ISO) respectively, while offering high torque backup, improved fuel economy, low noise and reduced emissions. The forward tilting hood provides easy access to the engine for routine service and maintenance.
| 7865 | 8865 | |
|---|---|---|
| Direct-injection Perkins engine | 1104A-44 | 1104A-44 |
| max power ISO hp/kW | 74 / 54,5 | 81,6 / 60 |
| net PTO power ISO hp/kW | 68,5 / 50,5* | 75,5 / 55,5* |
| max. torque lb. (Nm) | 213 (290) | 215 (292) |
| displacement/nr. of cylinders cu. in. (cm3) | 268,5 (4400) / 4 | 268,5 (4400) / 4 |
| fuel tank capacity gal. (lt) | 23 (86) | 23 (86) |
* Manufacturer's estimate
Three options of modular transmission
The base transmission features a four-speed, three-range gearbox with reverse which provides 12FWD+4REV speeds. The second option includes a reverse shuttle which allows the driver to reverse all speeds of the base gearbox thus obtaining 12FWD+12REV speeds. The third option with creep speed unit provides a total of 24FWD+12REV speeds. The centrally-located reverse shuttle lever allows the driver to reverse all gears and engage the creep speed option with maximum comfort.
Ample and comfortable driver’s seat
The driver’s seat is mounted on an ample platform and equipped with a fully adjustable sprung seat to maximise the driving comfort.The ergonomically-arranged controls make the operator’s work easier and more comfortable. The forward tilting hood gives easy access to the engine for maintenance operations. The four-post ROPS can be equipped with a sun canopy. In addition to this, the tractor can be supplied with a cab as an option.
Powerful hydraulics for power lift and auxiliary valves
The hydraulic system provides a maximum total flow of GPM 20,2 (76.5 l/min). Equipped with Cat. 2 three-point linkage, the mechanical power lift provides position, draft, intermix and float control functions while ensuring a maximum lifting capacity of lb. 8140 (3700 kg). The 60 Series tractors features one standard and two optional simple- and double-acting auxiliary valves.
| 7865 | 8865 | |
|---|---|---|
| rear tyres 4WD | 18,4 - 30 | 18,4 - 30 |
| A total length without ballast in. (mm) | 150 (3810) | 150 (3810) |
| B minimum width in. (mm) | 73,6 (1870) | 73,6 (1870) |
| C wheelbase 2WD/4WD in. (mm) | 92,1 / 91,2 (2340 / 2316) | 92,1 / 91,2 (2340 / 2316) |
| D height at steering wheel in. (mm) | 67,7 (1720) | 67,7 (1720) |
| E max ground clearance 4WD in. (mm) | 17 (430) | 17 (430) |
| F height to safety frame in. (mm) | 102 (2590) | 102 (2590) |
| F height at top of cab in. (mm) | 102 (2590) | 102 (2590) |
| weight (without ballast) 4WD lb. (Kg) | 6923 (3147) | 6923 (3147) |
