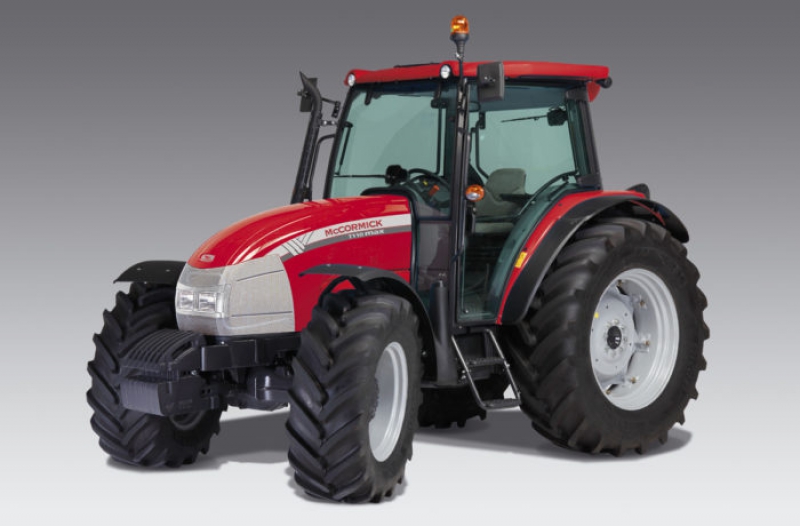

The T-MAX series
Building on the best features from the C-Max and X60 models, the T-Max range offers McCormick's state-of-the-art technology in a tractor that combines outstanding performance and reliability with unbeatable comfort and ergonomics. Available in both platform and cab versions, the new T-Max series sports a restyled hood and new taillights reflecting the brand’s distinctive family styling. The range features as standard a Speed Four modular transmission with four synchronized gears and three mechanical speed ranges and a hydraulic wet multi-disc PTO clutch. The entry level 12+12 speed transmission is available in both 30 km/h and 40 km/h versions. An intermediate version with synchro shuttle and overdrive transmission (Synchro Shuttle version) provides 24+12 speeds. The T-Max series comprises four models, all meeting the Tier 3 emission standards: a turbocharged model, the 90, and three turbo-aftercooled models, the 100, 110 and 115.
Perkins 1104D engines
The T-Max series comprises four models, all meeting the Tier 3 emission standards: a turbocharged model, the 90, and three turbo-aftercooled models, the 100, 110 and 115.
| T90 MAX (T3) Syncro and PowerShuttle | T100 MAX (T3) Syncro and PowerShuttle | T110 MAX (T3) Syncro and PowerShuttle | T115 MAX (T3) Syncro and PowerShuttle | |
|---|---|---|---|---|
| PERKINS TIER 3 DIRECT INJECTION ENGINE | 1104D-44T | 1104D-44TA | 1104D-44TA | 1104D-44TA |
| MAX POWER ISO HP/KW | 83/61 | 92,5/68 | 102/75 | 110,2/81 |
| MAX TORQUE NM | 352 | 393 | 416 | 410 |
| DISPLACEMENT [CM3] | 4400/4 | 4400/4 | 4400/4 | 4400/4 |
| net PTO power (ISO ) hp /kW | 70,5/52 | 79/58 | 86,5/63,5 | 93,5/68,5 |
Synchro Shuttle and Power Shuttle versions
The range features as standard a Speed Four modular transmission with four synchronized gears and three mechanical speed ranges and a hydraulic wet multi-disc PTO clutch. The entry level 12+12 speed transmission is available in both 30 km/h and 40 km/h versions. An intermediate version with synchro shuttle and overdrive transmission (Synchro Shuttle version) provides 24+12 speeds. A brand new feature is the hydraulic power shuttle combined with a T-Tronic three-shift option (H-M-L) which triples the gears of the base transmission providing in total 36 forward and 12 reverse speeds (Power Shuttle version). A creep speed unit is available as an option on both the Synchro Shuttle 2WD and Power Shuttle versions. The Power Shuttle version is equipped with a de-clutch control allowing the operator to change gear by simply pressing the button on the gear lever without using the clutch pedal. The de-clutch system is operated by an electronic control unit which also controls the power shuttle, the T- Tronic transmission and the PTO. The PTO offers three speeds – 540, 750 (540 Eco) and 1000 rpm, to suit the different versions. The mechanical power lift (electronic power lift only on the Power Shuttle version) is equipped with draft control function on the lower links.
“total view” cab
The most outstanding feature of the T-MAX series tractors cab is the all-round visibility of the “total view” cab provided by the allglass side doors hinged onto the rear post. The interiors, stylish and accurate, have been executed by making large use of the composite materials of modern automotive design. All controls are arranged in a comfortable and intuitive position, according to current ergonomic standards. The heating/ventilation and air-conditioning system is installed on the cab roof with considerable benefits for the driver in terms of comfort, safety and health. The ventilation system is integrated by two filters designed to purify the air inside the cab. The roof features a fixed glazed hatch with sunshade, particularly useful when working with front loaders, and four lights providing great visibility during night work. Natural ventilation is ensured by the openable front and rear windscreens.
Hydraulik
The new hydraulic circuit provides a maximum total flow of 82 l/min. The system features up to 4 auxiliary spool valves with lever controls integrated in the console at the driver’s right-hand side. Two of them are controlled by joystick for front loader operations, while the other two are operated by a standard lever ensuring this range an extra versatility and productivity when working with farm implements.
DIMENSIONS AND WEIGHTS
| T 90 MAX (T3) Syncro e Power Shuttle | T 100MAX (T3) Syncro e Power Shuttle | T 110MAX (T3) Syncro e Power Shuttle | T 115MAX (T3) Syncro e Power Shuttle | |
|---|---|---|---|---|
| REAR TYRES | 480/70R34 | 480/70R34 | 480/70R34 | 480/70R34 |
| TOTAL LENGHT WITH BALLAST MM | 4160 | 4160 | 4160 | 4160 |
| MIN. WIDTH MM | 2110 | 2110 | 2110 | 2110 |
| WHEELBASE 2RM/4RM | 2365/2340 | 2365/2340 | 2365/2340 | 2365/2340 |
| HEIGHT OVER CAB | 2563 | 2563 | 2563 | 2563 |
| HEIGHT TO SAFETY FRAME | 2560 | 2560 | 2560 | 2560 |
| GROUND CLEARANCE | 475 | 475 | 475 | 475 |
| TOTAL WEIGHT WITHOUT BALLAST+ (150 CAB) | 3650 | 3650 | 3650 | 3650 |
