G-MAX

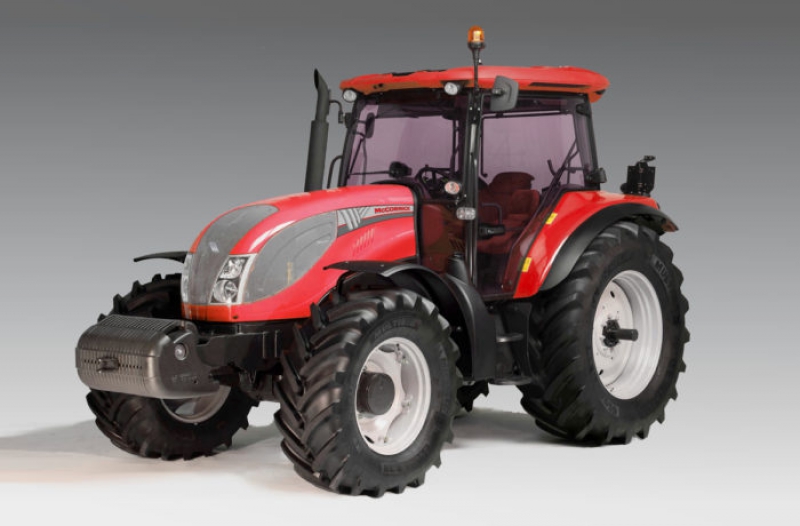

The new G-MAX tractor range comes to the market after extensive restyling. Updates include a new “DELUXE” four-post cab with large glazed areas and ergonomicallyarranged controls for the cab version and a revamped platform with newly designed dashboard and controls for the platform version. The sloping line of the hood reflecting the McCORMICK family style, along with the new cab and platform design, provides unobstructed view in all directions, thereby improving manoeuvrability and driving comfort. The new G-MAX offers a choice of two transmissions: a Speed Six mechanical transmission (18FWD+18REV) for the (STD version) and a T-Tronic electronic transmission (54FWD+18REV) with Declutch control and Reverse Power Shuttle for the (E version). Both transmissions can be optionally equipped with a creeper, making this tractor equally suited for both field work and road transport operations. The PTO with wet multi-disc clutch is electrohydraulically operated via a push-button. The hydraulic system delivers a maximum flow rate of 125 l/min and the power lift with twin assistor rams provides a lift capacity of up to 8400 kg. The system also features five auxiliary control valves for the maximum versatility of use. The four G-MAX models are powered by the very latest generation of BETAPOWER 6-cylinder turbo engines with air-to-air intercooler, meeting the TIER 3 emission standards. The new engines deliver 117, 133, 141 and 157 Hp (ISO ratings), respectively.
*Flyer available in english, french and spanish
BETAPOWER 6-cylinder turbo engines
The four G-MAX models are powered by the very latest generation of BETAPOWER 6-cylinder turbo engines with air-to-air intercooler, meeting the TIER 3 emission standards.
| G 125 MAX | G 135 MAX | G 145 MAX | G 165 MAX | |
|---|---|---|---|---|
| “TIER 3” Turbo air-to-air intercooler | BETAPOWER | BETAPOWER | BETAPOWER | BETAPOWER |
| Cylinders / Displacement cm3 | 6 / 6728 | 6 / 6728 | 6 / 6728 | 6 / 6728 |
| Max. Engine Power (ISO) HP/kW | 117 / 86 | 133 / 98 | 141 / 104 | 157 / 116 |
| Rated speed Rpm | 2200 | 2200 | 2200 | 2200 |
| Max. torque LB.(Nm) | 380 (515) | 435 (590) | 461 (625) | 509 (691) |
| Max. torque speed Rpm | 1250 | 1250 | 1250 | 1250 |
| Bore/Stroke In.(mm) | 4.1/5.2 (104/132) | 4.1/5.2 (104/132) | 4.1/5.2 (104/132) | 4.1/5.2 (104/132) |
| Displacement Cm3 | 410 (6728) | 410 (6728) | 410 (6728) | 410 (6728) |
| Nr. of cylinders / Turbocharged | 6 / YES | 6 / YES | 6 / YES | 6 / YES |
| Compression Ratio | 17,5:1 | 17,5:1 | 17,5:1 | 17,5:1 |
| Water cooling | ||||
| Axial air filter with cyclone preacleaning stage | ||||
| Air filter ejector | ||||
| Fuel tank capacity Gal. (Lt) | 68 (260) | 68 (260) | 68 (260) | 68 (260) |
Three modular transmission options
The new G-MAX offers a choice of two transmissions: a Speed Six mechanical transmission (18FWD+18REV) for the (STD version) and a T-Tronic electronic transmission (54FWD+18REV) with Declutch control and Reverse Power Shuttle for the (E version). Both transmissions can be optionally equipped with a creeper, making this tractor equally suited for both field work and road transport operations.
Ample and comfortable driver’s seat
With fully adjustable sprung seat, hydraulic steering and ergonomically-arranged controls, comfort, the driver’s seat allows the operator to work with maximum comfort. The two-post ROPS can be optionally equipped with a sun canopy.
Powerful hydraulics for power lift and auxiliary valves
The hydraulic system delivers a maximum flow rate of 125 l/min and the power lift with twin assistor rams provides a lift capacity of up to 8400 kg. The system also features five auxiliary control valves for the maximum versatility of use.
DIMENSIONS AND WEIGHTS
| G125 MAX | G135 MAX | G145 MAX | G165 MAX | |
|---|---|---|---|---|
| FRONT TYRES | 14/9R28 | 420/70R28 | 480/65R28 | 540/65R28 |
| REAR TYRES | 18/4R38 | 520/70R38 | 600/65R38 | 650/65R38 |
| HEIGHT OVER CAB in.(mm) | 117.5 (2980) | 117.5 (2980) | 117.5 (2980) | 117.5 (2980) |
| WHEELBASE in.(mm) | 110 (2800) | 110 (2800) | 110 (2800) | 110 (2800) |
| MAX. LENGTH (WITH BALLAST WEIGHTS) in.(mm) | 210.5 (5345) | 210.5 (5345) | 212.5 (5400) | 220.5 (5610) |
| GROUND CLEARANCE in.(mm) | 19.5 (500) | 19.5 (500) | 19.5 (500) | 19.5 (500) |
| MIN/MAX WIDTH in.(mm) | 56.5/64 (2200/2520) | 56.5/64 (2200/2520) | 56.5/64 (2200/2520) | 57/64 (2200/2520) |
| TOTAL WEIGHT (WITHOUT BALLAST WEIGHTS) LB (Kg) | 13200(6000) | 13200(6000) | 13200(6000) | 13200(6000) |
