E-Line tractors: where simplicity meets quality.
Also the F E-Line series wears a new look for 2015 in line with the distinctive family styling introduced on the latest generation of McCormick tractors. The new tractor sports a fully restyled hood and front grille with integrated round headlights, while the decals on the hood sides reflect the new graphics adopted in 2012. The driving position in both the cab and platform versions is finished in the same colours as the plastics of the dashboard and side consoles. The cab version also sports a new colour for the ceiling. The tried and tested technical features of the F E-Line have remained unchanged in the new version: 12+12 speed transmission with optional creeper, mechanicallyengaged PTO, hydraulic system with one remote valve as standard, limited-slip differential lock on the front axle, automatic four-wheel drive engagement when braking. The cab with all-round visibility features an analog control panel and ergonomically-arranged controls for ease of operation and can be optionally equipped with air-conditioning. The version with iso-mounted platform offers the same level of driveability and comfort as the cab version. F E-Line: where simplicity meets quality.
PERKINS TIER 3
F70 F/GE/GB (T3) E - LINE | F80 F/GE/XL/GB (T3) E - LINE | F85 F/GE/GB (T3) E - LINE | F90 F/GE/XL/GB (T3) E - LINE | |
---|---|---|---|---|
PERKINS TIER 3 | 1103D-33TA | 1104D-44 | 1103D-33TA | 1104D-44T |
MAX. POWER (ISO RATING) | 68 / 50 | 74 / 54,5 | 79 / 58 | 83 / 61 |
NO. OF CYLINDERS/TURBO/AFTERCOOLER/WASTEGATE | 3 / T / A / W | 4 / — | 3 / T / A / W | 4 / T / W |
DISPLACEMENT | 3300 | 4400 | 3300 | 4400 |
four-speed basic transmission
The E-Line version features a four-speed basic transmission providing 12 forward and 12 reverse speeds, which can be integrated with a creeper option to achieve 16 forward and 16 reverse speeds.
Cab

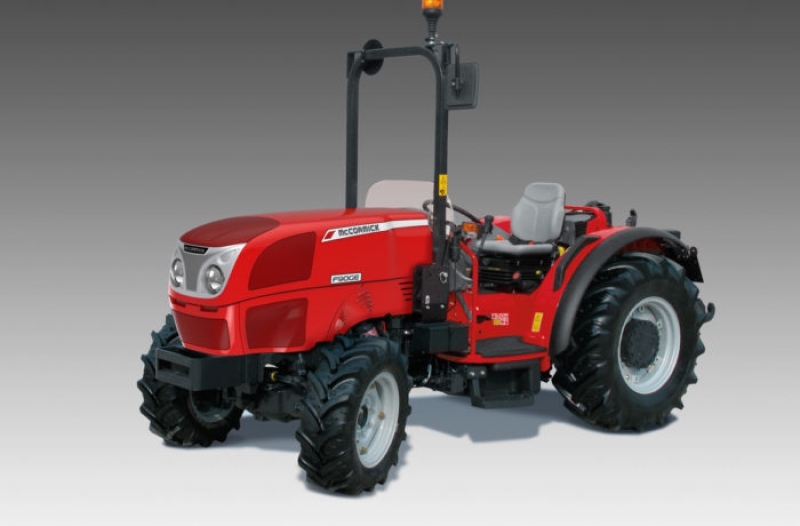

The cab, which can be optionally equipped with airconditioning, offers all-round visibility and features analog instruments and ergonomically-arranged controls for easier driving. The version with iso-mounted platform offers the same level of driving comfort as the cab version.
Hydraulic system
The hydraulic system is equipped as standard with one remote valve (one additional valve can be supplied as an option). When the rear wet disc brakes are activated, the fourwheel drive is automatically engaged via a “spring-on” device, ensuring effective braking on all four wheels. The front differential lock is the limited-slip type.
DIMENSIONS AND WEIGHTS
F80 E-LINE | ||||
---|---|---|---|---|
F | GE | XL | GB | |
MIN. WIDTH 4WD | 1437 | 1413 | 1554 | 1413 |
WEIGHT 4WD (CAB + 130 KG) | 2845 | 2540 | 2865 | 2540 |
F70 F/GB E-LINE | F70 GE/GB E-LINE | F85 F/GB E-LINE | F85 GE/GB E-LINE | |||
---|---|---|---|---|---|---|
MIN. WIDTH 4WD | 1437 | 1413 | 1437 | 1413 | ||
WEIGHT 4WD (CAB + 130 KG) | 2675/2480 | 2480 | 2675/2480 | 2480 |
F | GE | XL | GB | |
---|---|---|---|---|
F90 E-LINE | ||||
MIN. WIDTH 4WD | 1437 | 1413 | 1554 | 1413 |
WEIGHT 4WD (CAB + 130 KG) | 2845 | 2540 | 2865 | 2540 |
