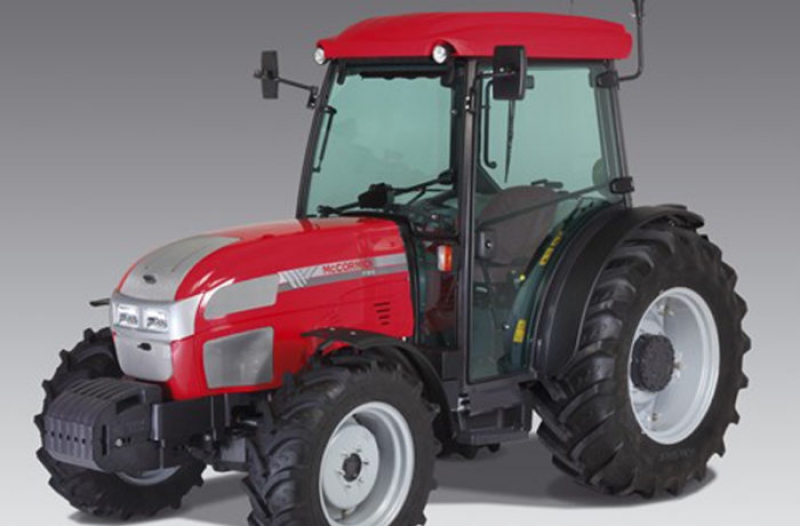

The McCormick F E-Line Tier2
The McCormick F E-Line range has been completely renovated to provide ultimate performance, improved ergonomics, maximum comfort and unequalled safety. The renovation work consists in a redesigned cab roof, a tilting hood restyling with integrated nicely shaped headlights, and a complete re-vamping of the cockpit, where a new and more ergonomic control layout provides maximum roominess for the operator, thus responding to specialist needs in an increasingly more professional way. An improved PTO engagement, a more precise adjustment of power lift sensitivity, the availability of front power lift and PTO as well as new hydraulic options underscore the evolution of this range... Thanks to its innovating features the McCormick F series, available in both cab and platform versions, is an outstanding all-round performer providing maximum reliability, utmost versatility and excellent manoeuvrability in any soil condition, in any specialized crop, with any sort of implements. A reduced steering radius further enhances performance and productivity where space is at a premium. The new McCormick F E-Line series, entirely renewed, comes with a transmission featuring 4 speeds over 3 ranges, providing a total of 12FW+12REV speeds, and with mechanical reverse shuttle at the driving wheel. A creeper can be fitted as an option to achieve 16FW+16REV speeds. In addition to the new technologies and options available, the McCormick F E-Line Series comes with new Perkins 1004C (Tier 2) 4 cylinder engines delivering 81,5 HP/ISO power ratings, and ensuring utmost reliability, enhanced efficiency, thus providing outstanding performance and torque backup at lower running costs. A product range combining performance, reliability, comfort and design. This is the great strength of McCormick F tractors.
Flyer available in english, french and spanish.
Perkins 1004C (Tier 2) 4 cylinder engines
In addition to the new technologies and options available, the McCormick F E-Line Series comes with new Perkins 1004C (Tier 2) 4 cylinder engines delivering 81,5 HP/ISO power ratings, and ensuring utmost reliability, enhanced efficiency, thus providing outstanding performance and torque backup at lower running costs.
| F85 E-Line | |
|---|---|
| Perkins Tier 2 direct-injection engine | 1104C-44 |
| Max. power (ISO) hp/kW | 81,5/60 |
| Rated speed rpm | 2200 |
| Max. torque Nm | 292 |
| max. torque speed rpm | 1400 |
| bore/stroke mm | 105/127 |
| displacement cm3 | 4400 |
| nr. of cylinders / turbocharged | 4 / no |
| compression ratio | 19,3:1 |
| water cooling | |
| air filter | |
| fuel tank capacity std+opt lt | 43 + 25 opt |
Transmission
The new McCormick F E-Line series, entirely renewed, comes with a transmission featuring 4 speeds over 3 ranges, providing a total of 12FW+12REV speeds, and with mechanical reverse shuttle at the driving wheel. A creeper can be fitted as an option to achieve 16FW+16REV speeds
driving position
The renovation work consists in a redesigned cab roof, a tilting hood restyling with integrated nicely shaped headlights, and a complete re-vamping of the cockpit, where a new and more ergonomic control layout provides maximum roominess for the operator, thus responding to specialist needs in an increasingly more professional way.
Dimensions and weights
| F85 E-Line | |
|---|---|
| front tyres 4WD | |
| rear tyres | 14.9R24 |
| A - Length 4WD mm | 4009 |
| B - min. width mm | 1319 |
| C - wheelbase 4WD mm | 2134 |
| D - height to steering wheel mm | 1450 |
| E - ground clearance 4WD mm | 265 |
| F - height over cab mm | 2250 |
| weight 4WD (without ballast) + 130 Kg cab | 2845 |
