B-Max T0-T2 Series – A whole new level of reliability and functionality

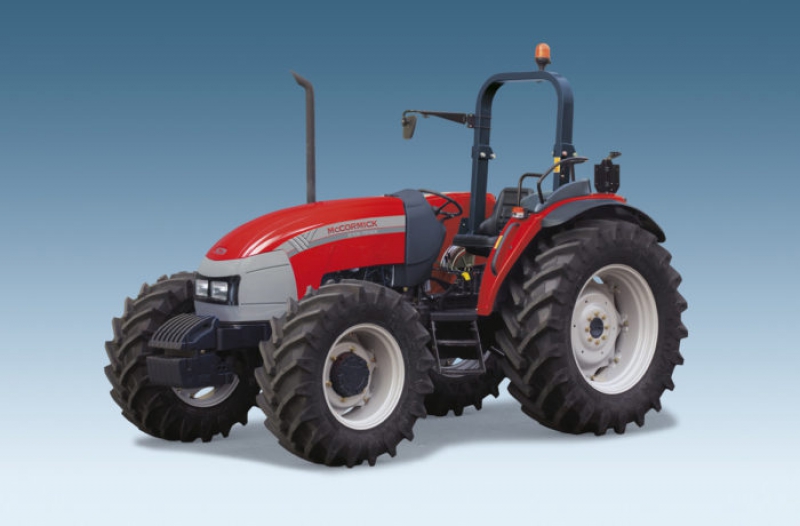

Introduced as a restyled version of the highly successful MB Series, the B-MAX T0-T2 tractor range from McCormick features a fresh new look along with enhanced ergonomics. The new tractor family comes in both two- and four-wheel drive versions and is offered at a very attractive entry level price. Entirely manufactured in Italy by Argo Tractors, the new B-MAX T0-T2 range delivers excellent performance combined with high reliability and functionality. Four models in the range are all powered by Perkins 1104 series four-cylinder engines that deliver high torque backup and quiet, eco-friendly performance while ensuring excellent fuel economy. The B-MAX B75B and B85B models feature Tier 0 engines, while the B-MAX B75 and B85 models are powered by engines meeting Tier 2 emissions regulations.
Perkins 1104A series engines
Four models in the range are all powered by Perkins 1104 series four-cylinder engines that deliver high torque backup and quiet, eco-friendly performance while ensuring excellent fuel economy. The B75B and B85B models feature Tier 0 engines, while the B75 and B85 models are powered by engines meeting Tier 2 emissions regulations.
| B75B MAX TIER 0 | B85B MAX TIER 0 | B75 MAX TIER 2 | B85 MAX TIER 2 | |
|---|---|---|---|---|
| Direct-injection Perkins engine | 1104A-44 | 1104A-44 | 1104C-44 | 1104C-44 |
| Max. power (ISO) HP/kW | 75 / 55 | 83.6 / 61.5 | 75 / 55 | 81.6 / 60 |
| Rated Speed | 2200 | 2200 | 2200 | 2200 |
| Max Torque LB (Nm) | 192 (261) | 215 (292) | 214 (290) | 215 (292) |
| Max Torque Speed | 1400 | 1400 | 1400 | 1400 |
| Bore/Stroke | 4/5(105/127) | 4/5(105/127) | 4/5(105/127) | 4/5(105/127) |
| Displacement/Nr.of Cylinders CU.IN. cm3 | 268,5 (4400) / 4 | 268,5 (4400) / 4 | 268,5 (4400) / 4 | 268,5 (4400) / 4 |
| Compression Ratio | 19,3:1 | 19,3:1 | 19,3:1 | 19,3:1 |
| Water cooling | • | • | • | • |
| Air Filter | • | • | • | • |
| Fuel tank capacity GAL. (Lt) | 24(90) | 24(90) | 24(90) | 24(90) |
• standard
Three modular transmission options
The modular transmission provides, as standard, 3 ranges and 4 speeds in each range, resulting in a total 12 forward and 4 reverse speeds and comes in three versions for a maximum speed of 30 km per hour. The second option provides 12 forward and 12 reverse speeds with mechanical reverse shuttle. A creep speed option is available on request to achieve 24 forward and 12 reverse speeds.
Ample and comfortable driver’s seat
The driving position features a sprung seat and an adjustable steering wheel for enhanced operator comfort. The controls are ergonomically arranged on the driver’s sides for maximum comfort and ease of operation. The gearshift lever on the right-hand side and the range lever on the left-hand side are easy to reach, while the shuttle lever adjacent to the steering wheel enables quick shifting from forward to reverse.The two-post ROPS can be optionally equipped with a sun canopy.
Powerful hydraulics for power lift and auxiliary valves
The hydraulic system provides a maximum total flow of GPM 20,2 (76.5 l/min). Equipped with Cat. 2 three-point linkage, the mechanical power lift provides position, draft, intermix and float control functions while ensuring a maximum lifting capacity of lb. 9570 (4350 kg). The B-Max tractors features one standard and two optional simple- and double-acting auxiliary valves.
DIMENSIONS AND WEIGHTS
| (in running order) | B75B MAX | B85B MAX | B75 MAX | B85 MAX |
|---|---|---|---|---|
| Front tyres 2WD | 9.00-16 | 9.00-16 | 9.00-16 | 9.00-16 |
| Front tyres 4WD | 12.4-24 | 12.4-24 | 12.4-24 | 12.4-24 |
| Rear tyres | 18.4-30 | 18.4-30 | 18.4-30 | 18.4-30 |
| Total length without ballast in. (mm) | 150 (3810) | 150 (3810) | 150 (3810) | 150 (3810) |
| Wheelbase 2WD/4WD in. (mm) | 87.5/91.2 (2224/2317) | 87.5/91.2 (2224/2317) | 87.5/91.2 (2224/2317) | 87.5/91.2 (2224/2317) |
| Height at steering wheel in. (mm) | 67.7 (1720) | 67.7 (1720) | 67.7 (1720) | 67.7 (1720) |
| Max ground clearance 4WD in. (mm) | 19.9 (430) | 19.9 (430) | 19.9 (430) | 19.9 (430) |
| Height to safety frame in. (mm) | 101.5 (2580) | 101.5 (2580) | 101.5 (2580) | 101.5 (2580) |
| Minimum Width in.(mm) | 73.6 (1870) | 73.6 (1870) | 73.6 (1870) | 73.6 (1870) |
| Minimum turning radius(without brakes) in.(mm) 2WD/4WD | 157.4 (4000) / 181 (4600) | 157.4 (4000) / 181 (4600) | 157.4 (4000) / 181 (4600) | 157.4 (4000) / 181 (4600) |
| Weight (without ballast) 4WD lb. (Kg) | 6923 (3147) | 6923 (3147) | 6923 (3147) | 6923 (3147) |
