A-MAX

Lorem ipsum dolor sit amet

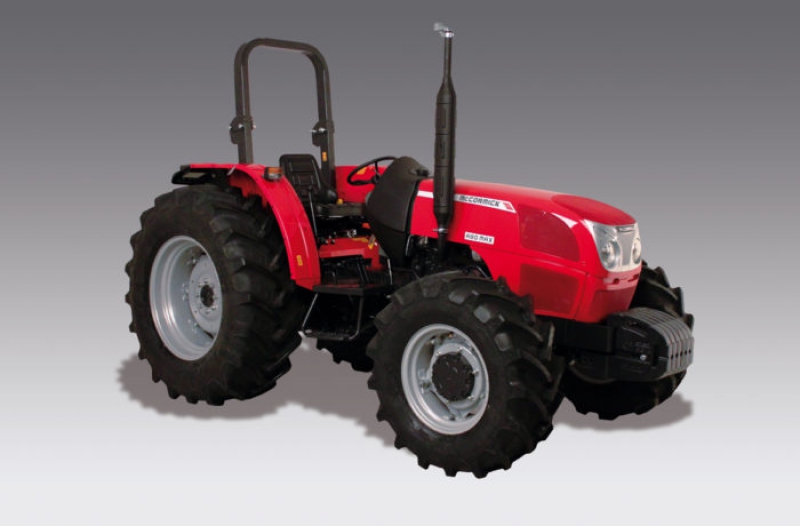

McCormick A-Max is the NEW incoming in the medium-low power range product. 4 cyl 4,4L Perkins engine equips all the models,with two different inlet systems,Naturally Aspired and Turbo. The power range starts from 68 to 82 HP with a very good choice of specifications. Strength, reliability and versatility are the key points in order to realize high performance in several farming operations like: soilpreparation, grassmowing, baling, orchard, loading and transport.


Perkins 4 CYL 4,4 litres Tier2 and Tier3


A75 MAXA80 MAXA90 MAX
Perkins Engine1104C-44 (Tier2)1104D-44 (Tier3)1104D-44T (Tier3)
Max Power (ISO)50,2 / 68,254,5 / 74,160,3 / 82
Rated speed  Rpm220022002200
Max. Torque    Nm273292352
Max. Torque speed  Rpm140014001400
Bore/Stroke     mm105/127105/127105/127
Displacement cm3440044004400
Nr. of cylinders / turbo4 / NO4 / NO4 / YES
Compression ratio18,2:118,2:118,2:1
Fuel tank capacity STD+OPT  Lt656565



Mechanical transmission made in Italy

Synchro shuttle  4 gears / 3 ranges

12 + 12 in base, 16 + 16 with creeper (Option)

Available working speeds:

5 speeds between 4 and 12 [km/h]

Creeper min speed 360 [m/h] (Option)


platform

Tiltablesteering adjuster

Ergonomic levers position

Safety frame locked
Good rear mirror visibility
Rear mirror support out of operator area

Levers close to seat for friendly use


Hydraulic System

Tandem pumps
42 for service [litres/min] 20 for steering [litres/min] 1 spool valve in base
Max 2 spool valves (1 option)

dimensions and weights




A75 MAXA80 MAXA90 MAX
Total lenght whitout / whit front weights  mm3742 / 41453742 / 41453742 / 4145
Wheelbase (4WD)        mm213021302130
Height to safety frame  mm2391 / 24412391 / 24412391 / 2441
Ground clearance  mm318 / 368318 / 368318 / 368
Minimum width (Tyres 14.9 R28) mm164516451645
Weight 4WD (Whithout Ballast)    Kg286028602860
